Humminbird HELIX 7 CHIRP MEGA SI GPS G4
- Series: HELIX
- Display Size: Diagonal 7 Inch
- Display Pixel Matrix: 1024H x 600V
- Sonar Standard: Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
- Sonar Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
- Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
- CHIRP Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
- Depth-Sonar: 1,200ft/365m (standard transducer) and 3,500ft/1067m (optional 50kHz)
- CHIRP Imaging Frequencies Supported: 455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz), MEGA SI (1075-1150 kHz)
- Depth-Down Imaging: 400ft / 122m (455 kHz) and 75ft / 23m (MEGA)
- Range-Side Imaging (Side-To-Side): 800ft / 244m (455 kHz) and 250ft / 76m (MEGA)
- Interface: Keypad Control
- Features: Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging, Side Imaging, MEGA Imaging
- Power Draw:800mA
- Power Input: 10.8-20VDC
- Power Output Peak-to-Peak: 4000 Watts
- Power Output RMS: 500 Watts

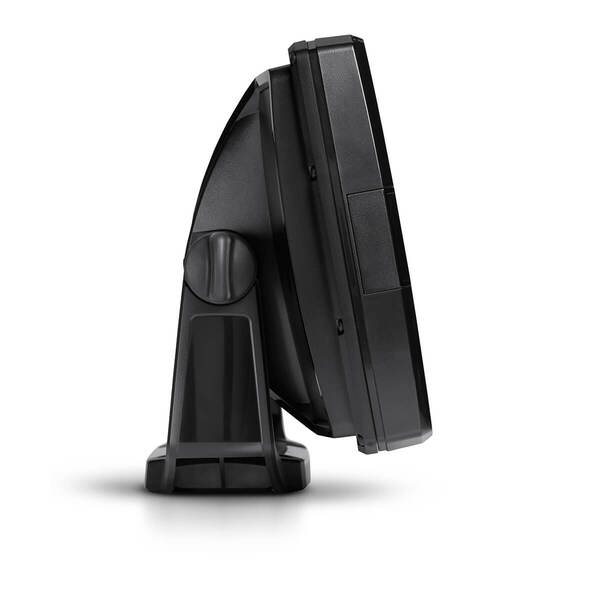

- Mount-Standard: Gimbal
- Mount-Standard Size: 10.54" W x 5.8" H x 3.68" D
- Mount-Optional Size: 10.54" W x 5.44" H x 1.13" D
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Trackplotting: Included

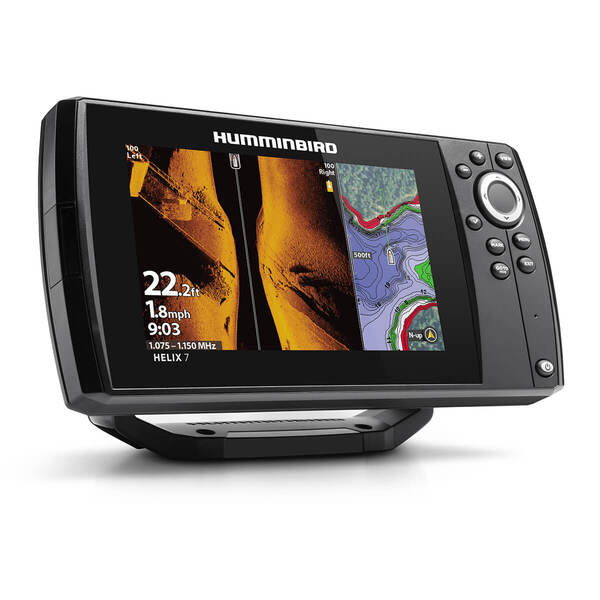

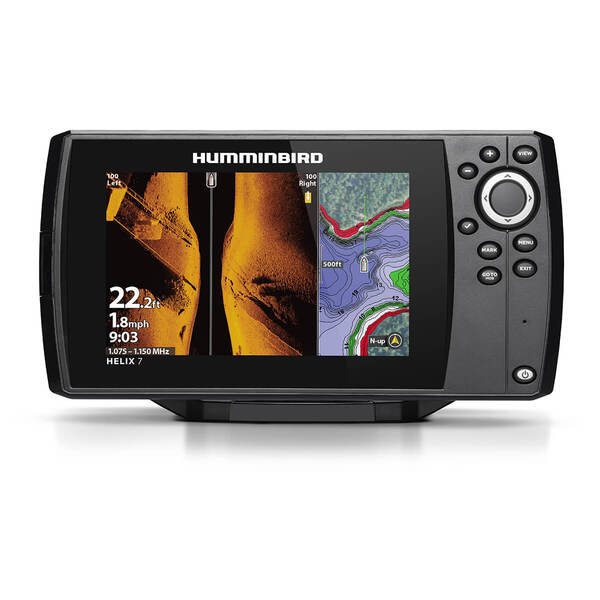

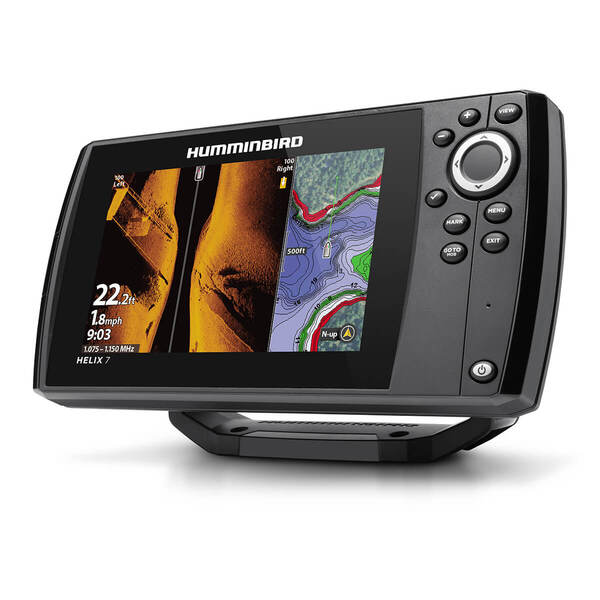

The HELIX 7 CHIRP MEGA SI GPS G4 fishfinder features MEGA CHIRP Side Imaging, MEGA CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and built-in Humminbird Basemap. With the upgraded high-definition 7-inch screen, you’ll see the world around your boat in detail!
Operating this fishfinder is very easy. You have instant access to preloaded views from the simple menu system, which you control with the soft-key buttons.
CHIRP stands for “Compressed High Intensity Radar Pulse.” By covering a wide range of frequencies, CHIRP produces more accurate, more detailed results of fish, structure and bottom.
The Dual Spectrum CHIRP 2D sonar system gives you two ways to search through the Low-Q CHIRP transducer; Wide Mode for maximum coverage and Narrow Mode to focus on the smallest detail.
MEGA CHIRP Down Imaging: DI filters out noise and clutter for a super clear image under the boat. CHIRP Digital Sonar processing from Down Imaging Sonar means you see lots of detail to make finding the fish easier and you can observe structures under the boat in great detail. Compared to the normal DI, the MEGA has much more power (frequency above 1000 kHz) for an even brighter image with 3X more detail.
MEGA CHIRP Side Imaging: With SI you filter out noise and clutter for a super clear image on both sides of the boat. CHIRP Digital Sonar processing of Side Imaging sonar means you see fish and structures to the left and right of the boat. Compared to the normal SI, the MEGA has much more power (frequency above 1000 kHz) for an even brighter image with 3X more detail.
The HELIX 7 CHIRP MEGA SI GPS G4 is equipped with an internal GPS and Humminbird baseboard. This gives you an adequate view of the underwater terrain immediately by default and allows you to fish and navigate with confidence. The system is compatible with Humminbird’s LakeMaster® and CoastMaster™ products, as well as Navionics® maps.
A great feature of this model is AutoChart Live. This lets you create real-time maps of your cuttings as you sail. It comes standard with eight hours of built-in recording time, which you can expand with AutoChart Zero Line SD cards for virtually endless AutoChart Live chart capacity.
This beautiful fishfinder comes complete with screen, transom-mount transducer, power cable, mounting bracket and mounting hardware and has a 1-Year Limited Warranty.
A very high quality product, as you expect from Humminbird, with GPS, MEGA Down and MEGA Side Imaging!
