Humminbird HELIX 15 CHIRP MEGA SI+ GPS G4N
- Fishfinder
- Series: HELIX
- Screen size: Diagonal 15.4 Inch
- Dimensions: 44 × 25.8 × 11 cm
- Display Pixel Matrix: 1280H x 800V
- Sonar: MSI+ / MDI+ / Dual Spectrum CHIRP
- Sonar-Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
- Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
- Transducer: XM 9 HW MSI T
- CHIRP frequencies: Full 150-200 / Narrow 140-200 / Wide 180-240 kHz
- CHIRP Imaging frequencies: 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
- Sonar Frequencies: 50/83/200/455/800 kHz & 1.2 MHz
- Depth-Sonar: 360m
- Depth Range Down:MDI+/61m – 800kHz/38m – 455kHz/122m
- Lateral Range:MSI+/122m – 800kHz/76m – 455kHz/244m
- Interface:Keypad Control
- Features: Bluetooth, Built In GPS, Built In Mapping, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking, Side Imaging and Wi-Fi
- Power Draw:4.1A
- Power Input: 10.8-20VDC
- Fuse Amp:5
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS: 1000 Watts
- Mount-Standard: Gimbal
- Mount-Standard Size: 17.63" W x 10.62" H x 4.44" D
- Mount-Optional Size: 17.63" W x 10.35" H x 1.41" D
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Trackplotting: Included
- Works with optional Navionics charts: Platinum+, Navionics+

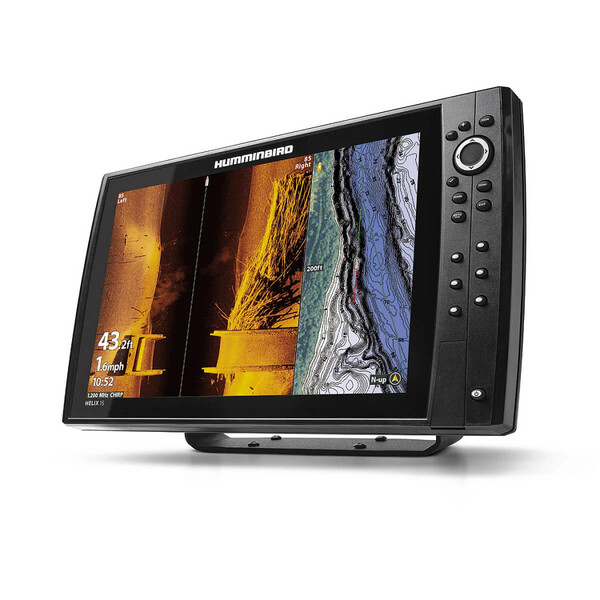

The HELIX 15 CHIRP MEGA SI+ GPS G4N fishfinder features Bluetooth, built-in GPS, Built In Mapping, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking, Side Imaging and Wi-Fi. With the upgraded high-definition 15.4-inch screen, you can see the world around your boat in detail!
Operating this fishfinder is very easy. You have instant access to pre-loaded views from the simple menu system, which you control with the soft-key buttons.
MEGA Side Imaging+: see the world below like never before with crystal clear Side Imaging views up to 60m on either side of your boat. You’ll see more fish and structure with 20% more detail and 60% more range than the normal MEGA Side Imaging sonar.
MEGA Down Imaging+: Get unprecedented clarity underwater with Down Imaging coverage up to 60 meters below your boat. You’ll see more fish and structure with 20% more detail and 60% more depth than the normal MEGA Down Imaging sonar.
CHIRP stands for “Compressed High Intensity Radar Pulse.” By covering a wide range of frequencies, CHIRP produces more accurate, detailed results of fish, structure and bottom.
Dual Spectrum CHIRP provides 2 ways to search: “Wide” for maximum coverage and “Narrow” for maximum detail. Because of the Low Q CHIRP transducer clear you will see defined fish arcs, incredible target separation and fewer adjustments to settings.
High-speed Ethernet and Bluetooth allows you to build a powerful, professional fishing system
build, so other devices can be easily paired.
NMEA2000: provides a display of engine performance and weather and water conditions.
A top feature of this model is AutoChart Live. It allows you to create real-time maps of your swims while sailing. By default, you have eight hours of built-in recording time, which you can expand with AutoChart Zero Line SD cards for virtually endless AutoChart Live map capacity.
The HELIX 15 CHIRP MEGA SI+ GPS G4N features an internal GPS and Humminbird base chart. This gives you an immediate enough view of the underwater terrain by default and allows you to fish and navigate with confidence. The system is compatible with Navionics charts: Platinum+, Navionics+.
